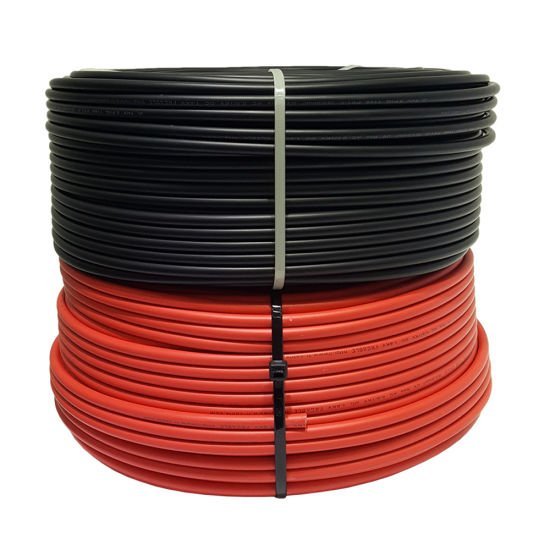

Solar Cable 6mm Black 100 Meter

Solar Cable 6mm Black 100 Meter

Original price was: ر.ع.720.000.Current price is: ر.ع.580.000.
In Stock

100 Meter Black

SKU: FSAC6004BCategories: ,

Description

Products Description

Photovoltaic cable
2.5/4/6/10mm2   1000V/1500V

1. Conductor: Tinned annealed copper
2. Insulation:120°C XLPE , black
3. Jacket:120°C XLPE , black or red Conductor: stranded bare copper or tinned copper
4. Application: Specifically designed for connecting photovoltaic system components inside and outside of building and equipment with high mechanical requirements and extreme weather conditions .For permanent installations.
5. General characteristics: Cable made of electron-beam cross-linked insulation and coating; high resistance against heat , cold, oil, abrasion, ozone, UV and weather; with improved reaction in case of fire . low smoke, halogen free , flame free , flame retardant.

Product Paramenters
Model
2.5mm2
4mm2
6mm2
10mm2
Cable Construction
Conductor
Stranded tinned copper
Stranding
45/0.25±0.01mm
56/0.285±0.01mm
78/0.295±0.01mm
132/0.295±0.01mm
Diameter
2.4mm
2.4mm
3.0mm
4.1mm
PrimaryInsulation
XLPE
Minimum Average Thickness
0.7mm
0.7mm
0.7mm
0.7mm
PrimaryInsulation Color
Black
Secondary Insulation
XLPE
Minimum Average Thickness
0.8mm
0.8mm
0.8mm
0.8mm
Secondary Insulation Color
 Red/Black
Outer Diameter
 5±0.15mm
 6.1±0.15mm
 6.1±0.15mm
7.4±0.2mm
Electrical Characteristics
Voltage Rating
1000V
Ambient Temperature
-40°C up to 90°C
Insulation Resistance At 20℃
≥ 640 MΩ.km
≥ 580 MΩ.km
≥ 500 MΩ.km
≥ 420 MΩ.km
Current carrying capacity AT 60℃
41A
55A
70A
98A
Spark test
10000 VAC
Voltage Withstand
6500 VAC
ConductorResistanceAT 20℃
≤ 8.21 Ω/km
≤ 5.09 Ω/km
≤ 3.39 Ω/km
≤ 1.95 Ω/km
Other Characteristics
Bending Radius Dynamic
≥ 5 X O.D.
Bending Radius Static
 ≥ 4 X O.D.
Ozone resistant
EN60811-403 Method A;EN 50396 8.1.3 Method B
Low smoke emission
EN61034-2,light transmittance ≥ 60%
Weathering/UL resistance
EN50289-4-17
Halogen free
IEC 60754-1
Flame retardant
IEC 60332-1-2
Model
2.5mm2
4mm2
6mm2
10mm2
Cable Construction
Conductor
Stranded tinned copper
Stranding
45/0.25±0.01mm
56/0.285±0.01mm
78/0.295±0.01mm
132/0.295±0.01mm
Diameter
2.4mm
2.4mm
3.0mm
4.1mm
PrimaryInsulation
XLPE
Minimum Average Thickness
0.7mm
0.7mm
0.7mm
0.7mm
PrimaryInsulation Color
Black
Secondary Insulation
XLPE
Minimum Average Thickness
0.8mm
0.8mm
0.8mm
0.8mm
Secondary Insulation Color
 Red/Black
Outer Diameter
 5±0.15mm
 6.1±0.15mm
 6.1±0.15mm
7.4±0.2mm
Electrical Characteristics
Voltage Rating
1500V
Ambient Temperature
-40°C up to 90°C
Insulation Resistance At 20℃
≥ 640 MΩ.km
≥ 580 MΩ.km
≥ 500 MΩ.km
≥ 420 MΩ.km
Current carrying capacity AT 60℃
41A
55A
70A
98A
Spark test
10000 VAC
Voltage Withstand
6500 VAC
ConductorResistanceAT 20℃
≤ 8.21 Ω/km
≤ 5.09 Ω/km
≤ 3.39 Ω/km
≤ 1.95 Ω/km
Other Characteristics
Bending Radius Dynamic
≥ 5 X O.D.
Bending Radius Static
 ≥ 4 X O.D.
Ozone resistant
EN60811-403 Method A;EN 50396 8.1.3 Method B
Low smoke emission
EN61034-2,light transmittance ≥ 60%
Weathering/UL resistance
EN50289-4-17
Halogen free
IEC 60754-1
Flame retardant
IEC 60332-1-2
Package  type
300m/roll
250m/roll
200m/roll
100m/roll
Weight
13KG
17KG
16KG
13KG
